| Technické údaje | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |

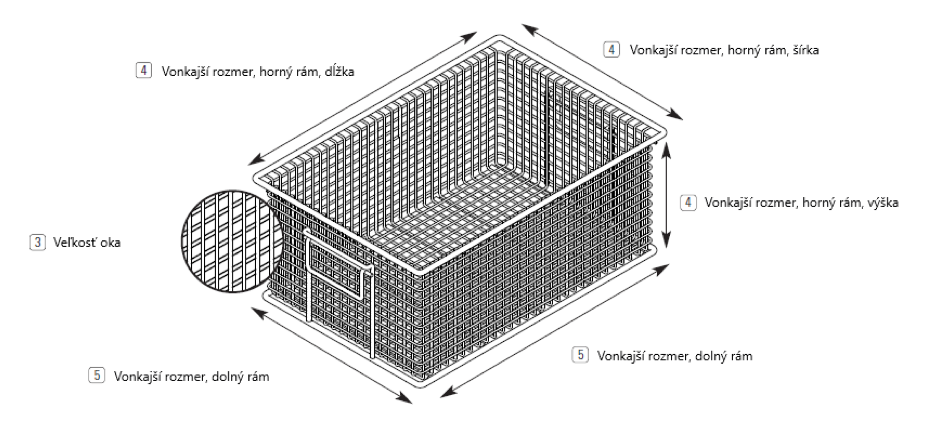

| Štandardné koše RK-Systém | Číslo produktu | Veľkosť oka (mm) | Vonkajší rozmer (mm) horný rám dĺžka/šírka/výška | Vonkajší rozmer (mm) dolný rám dĺžka/šírka | Svetlý vnútorný rozmer, dĺžka/šírka/výška od dna po spodok stohovacieho rámu (mm) | Objem v litroch (l) | Hmotnosť (kg) | Zaťaženie na stohovací rám (kg) |
| RK 380-06-200 | 22.516.0301 | 6 x 6 | 371 x 221 x 200 | 352 x 203 | 334 x 185 x 183 | 11,31 | 3,90 | 40 - 50 |
| RK 380-13-200 | 22.516.0302 | 13 x 13 | 371 x 221 x 200 | 352 x 203 | 332 x 183 x 182 | 11,06 | 2,50 | 40 - 50 |
| RK 408-07-200 | 22.516.0109 | 7 x 7 | 408 x 308 x 200 | 389 x 290 | 371 x 272 x 183 | 18,47 | 5,00 | 50 - 60 |
| RK 408-13-200 | 22.516.0124 | 13 x 13 | 408 x 308 x 200 | 389 x 290 | 367 x 268 x 182 | 17,90 | 4,20 | 50 - 60 |
| RK 480-07-104 | 22.516.0206 | 7 x 7 | 471 x 321 x 104 | 452 x 303 | 434 x 285 x 85 | 10,51 | 4,00 | 50 - 60 |
| RK 480-13-104 | 22.516.0106 | 13 x 13 | 471 x 321 x 104 | 452 x 303 | 430 x 281 x 86 | 10,39 | 3,50 | 50 - 60 |
| RK 480-07-200 | 22.516.0202 | 7 x 7 | 471 x 321 x 200 | 452 x 303 | 434 x 285 x 183 | 22,64 | 5,30 | 50 - 60 |
| RK 480-13-200 | 22.516.0102 | 13 x 13 | 471 x 321 x 200 | 452 x 303 | 430 x 281 x 182 | 21,99 | 4,50 | 50 - 60 |
| RK 480-13-300 | 22.516.0117 | 13 x 13 | 471 x 321 x 300 | 452 x 303 | 430 x 281 x 281 | 33,95 | 5,36 | 50 - 60 |
| RK 530-07-200 | 22.516.0203 | 7 x 7 | 521 x 321 x 200 | 502 x 303 | 484 x 285 x 183 | 25,24 | 5,60 | 50 - 60 |
| RK 530-13-200 | 22.516.0103 | 13 x 13 | 521 x 321 x 200 | 502 x 303 | 480 x 281 x 182 | 24,55 | 4,80 | 50 - 60 |
| RK 608-7-300 | 22.516.0107 | 7 x 7 | 608 x 408 x 299 | 589 x 389 | 568 x 370 x 279 | 58,63 | 9,70 | 70 - 80 |
| RK 608-13-300 | 22.516.0105 | 13 x 13 | 608 x 408 x 300 | 589 x 389 | 567 x 367 x 281 | 58,47 | 7,60 | 70 - 80 |
| RK 670-07-300 | 22.516.0204 | 7 x 7 | 651 x 469 x 299 | 632 x 450 | 611 x 431 x 280 | 73,74 | 10,90 | 70 - 80 |
| RK 670-13-300 | 22.516.0104 | 13 x 13 | 651 x 469 x 300 | 632 x 450 | 610 x 428 x 282 | 74,95 | 8,53 | 70 - 80 |
| RK 600-7-287 M | 22.516.0802 | 7 x 7 | 599 x 399 x 287 | 574 x 374 | 574 x 376 x 261 | 56,33 | 10,50 | 70 - 80 |
| RK 600-13-287 M | 22.516.0800 | 13 x 13 | 599 x 399 x 287 | 574 x 374 | 578 x 378 x 261 | 57,02 | 8,40 | 70 - 80 |
| RK 600-20-287 M | 22.516.0801 | 20 x 20 | 599 x 399 x 287 | 574 x 374 | 578 x 378 x 261 | 57,02 | 8,00 | 70 - 80 |
| RK 660-7-337 M | 22.516.0804 | 7 x 7 | 659 x 479 x 337 | 659 x 454 | 634 x 456 x 311 | 89,91 | 13,40 | 70 - 80 |
| RK 660-13-337 M | 22.516.0803 | 13 x 13 | 659 x 479 x 337 | 659 x 454 | 638 x 458 x 311 | 90,88 | 11,00 | 70 - 80 |
| RK 660-20-337 M | 22.516.0805 | 20 x 20 | 659 x 479 x 337 | 659 x 454 | 638 x 458 x 311 | 90,88 | 10,60 | 70 - 80 |
